Blackmagic Designs new camera key or have the Pocket 4K and URSA Mini 4.6K updated with G2, plus-post-production gear. This article will be discussing about Pocket Cinema Camera 6 KS 35 EF Mount, key features as well as camera price, layout and button, weight, connectivity, lens, focus, image stabilization, battery, resolution, fixed photo and time code, storage rate, recording format, media, Built-in Loots.
2019 is still a good year for cameras, and it will be going on throughout 2020.
The stream is available on YouTube as well as on the Blackmagic Design website.
 |
| Source |
Pocket Cinema Camera 6 KS 35 EF Mount
Blackmagic Design has released a new Pocket Cinema 6 camera that uses an EF mount with full electronics so that the Canon EF lenses will interact with the camera for focus and iris control. As IS lens support.
source
Key Features
Active Canon EF Mt.Super 35-size HDR sensor
Record up to 6K 6144 x 3456 50 amps
Dual native 400 and 3200 ISO to 25,600
Find Huge Collection of Best Seller Latest Camera Lenses
The sensor is 6K S35 23.10mm x 12.99 with 6144 x 3456 resolution. The crop factor is 1.558x when shooting 6K using the full size of the sensor.
Above you will see the difference in sensor size compared to the BMPCC 4K.
BM is listing that Pocket Cinema Camera 6K13 has dynamic range stops. It has the same dual native ISO of 400 and 3200 as the Pocket Cinema Camera 4K. When the ISO setting is between 100 and 1000, native ISO of 400 is used as a reference point. The ISO range between 1,250 and 25,600 uses the native ISO of 3,200 as a reference. If you are shooting in situations where you have a choice between ISO 1,1 or 1,250, BM recommends making a stop in your lens iris so that you can select ISO 1,250 as it will add higher native ISO and provide more cleaner results.
 |
| source |
Above you will see the difference in sensor size compared to the BMPCC 4K.
 |
| source |
BM is listing that Pocket Cinema Camera 6K13 has dynamic range stops. It has the same dual native ISO of 400 and 3200 as the Pocket Cinema Camera 4K. When the ISO setting is between 100 and 1000, native ISO of 400 is used as a reference point. The ISO range between 1,250 and 25,600 uses the native ISO of 3,200 as a reference. If you are shooting in situations where you have a choice between ISO 1,1 or 1,250, BM recommends making a stop in your lens iris so that you can select ISO 1,250 as it will add higher native ISO and provide more cleaner results.
 |
| source |
Despite both cameras the same claimed dynamic range, where the dynamic range stops are assigned is not the same. Based on these statistics provided by BM, the 6K version should have somewhat better highlight handling than 4K.
Find Huge Collection of Best Seller Latest Camera Lenses
Lens mount active EF mount
Focus and zoom on supported lenses, lens control iris
Dynamic Range 13 stops
Dual native ISO 400 and 3200
Shooting resolutions of 6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4: 1) up to 60 fps
5744 x 3024 (5.7K 17: 9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6: 5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17: 9) up to 120 pps
1920 x 1080 (HD) up to 120 fps
 |
| source |
Pocket Cinema Camera 6K at a glance
Effective sensor size 23.10mm x 12.99mm (Super 35)Lens mount active EF mount
Focus and zoom on supported lenses, lens control iris
Dynamic Range 13 stops
Dual native ISO 400 and 3200
Shooting resolutions of 6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4: 1) up to 60 fps
5744 x 3024 (5.7K 17: 9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6: 5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17: 9) up to 120 pps
1920 x 1080 (HD) up to 120 fps
 |
| source |
Frame rates are the highest sensor frame rates depending on the resolution and codec. Project frame rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps are supported.
Off-frame frame rates of 6K 2.4: 1, 120fps 2.8K 17: 9 and up to 60 fps in 1080hd.
Focus available in autofocus using compatible lenses
Price
The new model will retail price for US $ 2495 and is available now. B&H has listed shipping on August 12th.The camera shares the same form factor as the BMPCC4K. Many of the physical features of the camera are the same.
 |
| source |
Layout and Button
The layout of the buttons and connections is the same.
 |
| source |
Weight
The BMPCC 6K weighs 898 grams (1.98 lbs). The BMPCC 4K weighs 721 grams (1.59 pounds).
 |
| source |
HDMI & microphone Connectivity
It has a set of connections similar to the BMPCC4K. The camera also includes a full-size HDMI connector for monitoring with HDR and Clear 10 monitoring bit output support. There is a mini XLR connection with 48-volt Phantom Power for connecting professional microphones, a 3.5mm video camera style microphone input, headphone connection and a professional locking DC power connector. USB-C connection lets you connect and record directly to your media disc.
Find Huge Collection of Best Seller Latest Camera Lenses
The new camera uses all the accessories like the Pocket 4K, which makes it a bit easier to change as well. The front of the camera or the lens mount itself is large enough to accommodate a larger S35 sensor and the use of a native EF lens, but the body itself looks identical. It's great for existing owners to use Pocket 6K with the cages you already have.
The biggest difference, apart from the size of the sensor, is the addition of the Canon EF mount. The rationale for going with the EF is to adjust the camera to the world's largest range and most popular lens. If you already use EF lenses on DSLR, URSA Mini Pro or even the original Blackmagic movie camera, you should not spend any money.
If you own a BMPCC4K and have invested in MFT Glass, you may not be particularly happy that BM has now chosen to go with an EF mount, especially if you are considering upgrading.
Lens
The new camera uses all the accessories like the Pocket 4K, which makes it a bit easier to change as well. The front of the camera or the lens mount itself is large enough to accommodate a larger S35 sensor and the use of a native EF lens, but the body itself looks identical. It's great for existing owners to use Pocket 6K with the cages you already have.
 |
| source |
The biggest difference, apart from the size of the sensor, is the addition of the Canon EF mount. The rationale for going with the EF is to adjust the camera to the world's largest range and most popular lens. If you already use EF lenses on DSLR, URSA Mini Pro or even the original Blackmagic movie camera, you should not spend any money.
If you own a BMPCC4K and have invested in MFT Glass, you may not be particularly happy that BM has now chosen to go with an EF mount, especially if you are considering upgrading.
It gives you a good choice of glass but mounts many others using the adapter. For example, the MFT lens mount on a 4K model can be adapted with a PL, C, EF or other lens. With EF you are stuck.
Having said all that, I personally like the idea of the S35 sensor with EF mount as my choice of MFT.
As far as auto focus is concerned. All BM says: When using an auto focus lens that is compatible with your camera, press the "Focus" button once for automatic focus. By default the lens will focus automatically on the center of the image, but you can select the optional Auto Focus Point by tapping on the LCD screen of the area you want to focus on. Double press OT Note to reset the focus point to the center of the screen It is important to know that most lenses support electronic focus, some lenses can be set in manual or auto focus mode. In this case you need to make sure your lens is set to Auto Focus mode.
Having said all that, I personally like the idea of the S35 sensor with EF mount as my choice of MFT.
 |
| image |
Auto Focus
As far as auto focus is concerned. All BM says: When using an auto focus lens that is compatible with your camera, press the "Focus" button once for automatic focus. By default the lens will focus automatically on the center of the image, but you can select the optional Auto Focus Point by tapping on the LCD screen of the area you want to focus on. Double press OT Note to reset the focus point to the center of the screen It is important to know that most lenses support electronic focus, some lenses can be set in manual or auto focus mode. In this case you need to make sure your lens is set to Auto Focus mode.
There is no mention of continuous auto focus, and it may well be that the camera can automatically focus on just one touch. If you are expecting the level of auto focus with Canon's DPF, you will be disappointed.
There is an 'Image Stabilization' option to enable or disable image stabilization on the lens without the Pocket Cinema Camera 4K physical switch. Given the 6 has an EF mount, we assume that Canon IS will be supported, but this could not be confirmed.
The new Pocket Cinema 6 uses the same LP-E6 battery. BMD has stated that the new Pocket 6K will have a runtime of about 45 minutes (recording 6K RAW at 24 fps at Sifest 2.0 at 50% with screen brightness).
No LCD monitor updated. This is the same LCD that you will find in the BMPCC4K.

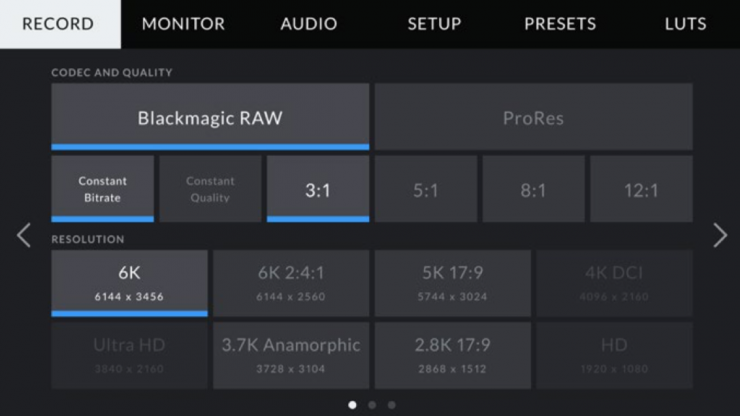

BM certainly offers users many options when it comes to the resolution and frame rates you want to shoot.
Blackmagic Pocket Cinema Camera can shoot at all standard resolutions and frame rates from HD to DCI 4K or even 6K. The camera will shoot at 6144 x 3456 16: 9 or 60 fps at 6144 x 2560 2.4: 1 and 60 fps at 5744 x 3024 17: 9 at 50 fps. You can window the sensor for higher frame rates and shoot up to 120 fps at 2.0K 26648 x 1512 17: 9. You can work in true anamorphic 6: 5, even using anamorphic lenses at 36K x 3020 at 3.7K 60 fps.
Pocket Cinema Camera 6 can be applied to an LCD touchscreen and HDMI output to anamorphic D-Squeeze. When you record in 3.7K 6: 5 anamorphic format it automatically applies '2x anamorphic de-squeeze' and in 16: 9 format you can enable '1.33x anamorphic de-squeeze'.
The Blackmagic Pocket Cinema Camera uses 6K Pro for Blackmagic RAW and scaled formats for full sensor and Windows sensor formats. You can only shoot Blackmagic RAWs at 6K, 6K (2.4: 1), 5.7K 16: 9, 3.7K anamorphic and 2.8K at 17: 9. If you want to shoot in 4K DCI, UHD, or HD, you can only do up to 422 HQ in ProRes taste.
Blackmagic Pocket Cinema Camera 6 is the highest sensor frame rate (The table above contains the codecs, resolutions, and maximum sensor frame rates available for Blackmagic Pocket Cinema Camera 6K)
 |
| image |
Image Stabilization
 |
| image |
Battery
 |
| image |
No LCD monitor updated. This is the same LCD that you will find in the BMPCC4K.
BM certainly offers users many options when it comes to the resolution and frame rates you want to shoot.
Resolution
 |
| image |
Blackmagic Pocket Cinema Camera can shoot at all standard resolutions and frame rates from HD to DCI 4K or even 6K. The camera will shoot at 6144 x 3456 16: 9 or 60 fps at 6144 x 2560 2.4: 1 and 60 fps at 5744 x 3024 17: 9 at 50 fps. You can window the sensor for higher frame rates and shoot up to 120 fps at 2.0K 26648 x 1512 17: 9. You can work in true anamorphic 6: 5, even using anamorphic lenses at 36K x 3020 at 3.7K 60 fps.
 |
| image |
Pocket Cinema Camera 6 can be applied to an LCD touchscreen and HDMI output to anamorphic D-Squeeze. When you record in 3.7K 6: 5 anamorphic format it automatically applies '2x anamorphic de-squeeze' and in 16: 9 format you can enable '1.33x anamorphic de-squeeze'.
The Blackmagic Pocket Cinema Camera uses 6K Pro for Blackmagic RAW and scaled formats for full sensor and Windows sensor formats. You can only shoot Blackmagic RAWs at 6K, 6K (2.4: 1), 5.7K 16: 9, 3.7K anamorphic and 2.8K at 17: 9. If you want to shoot in 4K DCI, UHD, or HD, you can only do up to 422 HQ in ProRes taste.
 |
| image |
Blackmagic Pocket Cinema Camera 6 is the highest sensor frame rate (The table above contains the codecs, resolutions, and maximum sensor frame rates available for Blackmagic Pocket Cinema Camera 6K)
The image is scaling to 2.7K when shooting in HD at 120fps, while at 60fps it is scaling to 5.7K. The fastest frame rate available for Pocket Cinema Camera 6K is when scaled to 2.8K 17: 9 windows and HD 2.7K windows.
Unless the sensor grain is shooting at different resolutions and frame rates, it is 1.558x at 6k, 1.6kx at 6k 2.4: 1, 1.692x at 5.7k. Crop factor when shooting 2.8K and HD at 120fps at 3.388x.
Fixed photo and Timecode
You can also shoot fixed photos at 21.2 megapixels
Pocket Cinema Camera 6K also has a timecode feature that allows the camera to be jammed with a timecode using 3.5mm audio input from a device like Tentel Sync to use the new multicam features in Denty Resolve 16.1. The camera will automatically detect the signal and set the timecode. The timecode is not as accurate as the URSA Mini Pro and will flow over time, but the feature is very handy if you need timecode sync.
Storage rate
 |
| image |
6144 x 3456 (6K)
Blackmagic RAW 3: 1 - 323 MB / s
Blackmagic RAW 5: 1 - 194 MB / s
Blackmagic RAW 8: 1 - 121 MB / s
Blackmagic RAW 12: 1 - 81 MB / s
Blackmagic RAW Q0 - 194 to 483 MB / s *
Blackmagic RAW Q5 - 49 to 139 MB / s **
6144 x 2560 (6K 2.4: 1)
Blackmagic RAW 3: 1 - 240 MB / s
Blackmagic RAW 5: 1 - 144 MB / s
Blackmagic RAW 8: 1 - 90 MB / s
Blackmagic RAW 12: 1 - 60 MB / s
Blackmagic RAW Q0 - 144 to 359 MB / s *
Blackmagic RAW Q5 - 37 to 103 MB / s **
5744 x 3024 (5.7 k 17: 9)
Blackmagic RAW 3: 1 - 264 MB / s
Blackmagic RAW 5: 1 - 159 MB / s
Blackmagic RAW 8: 1 - 100 MB / s
Blackmagic RAW 12: 1 - 67 MB / s
Blackmagic RAW Q0 - 159 to 395 MB / s *
Blackmagic RAW Q5 - 40 to 114 MB / s **
4096 x 2160 (4K DCI)
Apple ProRus 422HQ - 117.88 MB / s
Apple Pro R422 - 78.63 MB / s
Apple Pro 440 LT - 54.63 MB / s
Apple ProRes Proxy - 24.25 MB / sec
3840 x 2160 (Ultra HD)
Apple Pro 422 HQ - 110 MB / s
Apple Pro 422 - 73.6 MB / s
Apple Pro 422 LT - 51 MB / s
Apple ProRes Proxy - 22.4 MB / s
3728 x 3104 (3.7K 6: 5 Anamorphic)
Blackmagic RAW 3: 1 - 176 MB / s
Blackmagic RAW 5: 1 - 106 MB / s
Blackmagic RAW 8: 1 - 67 MB / s
Blackmagic RAW 12: 1 - 45 MB / s
Blackmagic RAW Q0 - 106 to 265 MB / s *
Blackmagic RAW Q5 - 27 to 76 MB / s **
2868 x 1512 (2.8K 17: 9)
Blackmagic RAW 3: 1 - 67 MB / s
Blackmagic RAW 5: 1 - 41 MB / s
Blackmagic RAW 8: 1 - 26 MB / s
Blackmagic RAW 12: 1 - 17 MB / s
Blackmagic RAW Q0 - 41 to 101 MB / sec *
Blackmagic RAW Q5 - 11 to 29 MB / s **
1920 x 1080
Apple Pro 422 HQ - 27.5 MB / s
Apple Pro R 422 - 18.4 MB / s
Apple ProRus 422 LT - 12.75 MB / s
Apple ProRes Proxy - 5.6 MB / s
Speaking of storage rates, you will see a comparison chart above that shows you how long you can record BMPCC 4K and BMPCC 6K to use at their highest resolution and frame rate.
Above you will see the full storage time for 6K, 6K 2.4: 1 and 5.7K 17: 9.
Blackmagic RAW 3: 1, 5: 1, 8: 1, 12: 1, Q0 and Q5 6144 x 3456, 6144 x 2560, 5744 x 3024, 3728 x 3104 and 2868 x 1512 film, extended video, video dynamic range or co Metadata Embed Custom 3D LUT.
4096 x 2160, 3840 x 2160 and 1920 x 1080 films, expanded videos or videos with dynamic range or custom 3D LUT.
Apple Pro 422 HQ - 110 MB / s
Apple Pro 422 - 73.6 MB / s
Apple Pro 422 LT - 51 MB / s
Apple ProRes Proxy - 22.4 MB / s
3728 x 3104 (3.7K 6: 5 Anamorphic)
Blackmagic RAW 3: 1 - 176 MB / s
Blackmagic RAW 5: 1 - 106 MB / s
Blackmagic RAW 8: 1 - 67 MB / s
Blackmagic RAW 12: 1 - 45 MB / s
Blackmagic RAW Q0 - 106 to 265 MB / s *
Blackmagic RAW Q5 - 27 to 76 MB / s **
2868 x 1512 (2.8K 17: 9)
Blackmagic RAW 3: 1 - 67 MB / s
Blackmagic RAW 5: 1 - 41 MB / s
Blackmagic RAW 8: 1 - 26 MB / s
Blackmagic RAW 12: 1 - 17 MB / s
Blackmagic RAW Q0 - 41 to 101 MB / sec *
Blackmagic RAW Q5 - 11 to 29 MB / s **
1920 x 1080
Apple Pro 422 HQ - 27.5 MB / s
Apple Pro R 422 - 18.4 MB / s
Apple ProRus 422 LT - 12.75 MB / s
Apple ProRes Proxy - 5.6 MB / s
 |
| image |
Speaking of storage rates, you will see a comparison chart above that shows you how long you can record BMPCC 4K and BMPCC 6K to use at their highest resolution and frame rate.
 |
| image |
Above you will see the full storage time for 6K, 6K 2.4: 1 and 5.7K 17: 9.
Recording formats
Blackmagic RAW 3: 1, 5: 1, 8: 1, 12: 1, Q0 and Q5 6144 x 3456, 6144 x 2560, 5744 x 3024, 3728 x 3104 and 2868 x 1512 film, extended video, video dynamic range or co Metadata Embed Custom 3D LUT.
4096 x 2160, 3840 x 2160 and 1920 x 1080 films, expanded videos or videos with dynamic range or custom 3D LUT.
Media
The Blackmagic Pocket Cinema Camera has a USB-C expansion port for recording directly to CIF and SD UHS-II card recorders and to an external media disk. While you can use a regular SD card for HD or higher performance, you can use native 4K or 6K Sifast cards when using UHS-II and Blackmagic RA. You can capture up to 6 hours of full resolution 6K element on a single 256GB SD UHS card II card. ProRes and Blackmagic RAW files work with all video software. You can even mount media cards on your computer and start editing them directly using the included Dvinci Relive Studio software.
Built-in Loots
Each camera offers LUTs that are specific to the sensor. The built-in spoils for the BMPCC 4K are not exactly the same as those found in the 6K version.
 |
| image |
Pocket 4K film on extended video / Pocket 6K film on extended video
The 'Pocket 4K Film to Video' or 'Pocket 6K Film to Video' displays a wider dynamic range than the Elute and applies a light contrast change with a smooth roll off on the highlights.
 |
| image |
Pocket 4K film to record 2020 hybrid log gamma from 2020 hybrid log gamma / Pocket 6K film REC shows a hybrid between 709 and the log image.
Pocket 4K Film to 2020 PQ Gamma / Pocket 6K Film to 2020 PQ Gamma
For efficient encoding of HDR images, we display a gamma curve based on what we can see with our eyes.
 |
| image |
 |
| image |
 |
| image |
Pocket 4K Film to Video / Video from Pocket 6K Film
For high definition video the REC 709 is similar to the color quality and has a higher level of contrast and saturation. This setting may be useful when using Blackmagic Pocket Cinema Camera along with other broadcast cameras using the REC 709 color space.
Take away
Hopefully, it won't get heated. The URSA Mini 4.6K camera makes it a good B-cam by sharing Pocket 6 with the same Blackmagic Generation 4 color science as owners will likely want to use it with their new timecode jamming feature, especially.Find Huge Collection of Best Seller Latest Camera Lenses
 |
| image |
In addition to autofocus, the ergonomics + EVF + built into ND's / inputs (which is the big thing).
It has more frame rate options, more codecs / bit depth of internal recording, more resolution, similar dynamic range / ISO / sensor, lower body weight + resolution
The BMD mentioned in the grant regarding the Pocket 4K delivery is working hard to fulfill the order. I mentioned that Pocket 6 is expected to be on B&H on August 12, and I expect a lot of orders to be made today. If BMD can get production ready and ready for a new camera, it would be good because people do not like to wait a few months to get their camera.
All in all it seems to be an interesting release especially with the larger S35 sensor and electronic EF mount. I'm curious to try it out.
All in all it seems to be an interesting release especially with the larger S35 sensor and electronic EF mount. I'm curious to try it out.
